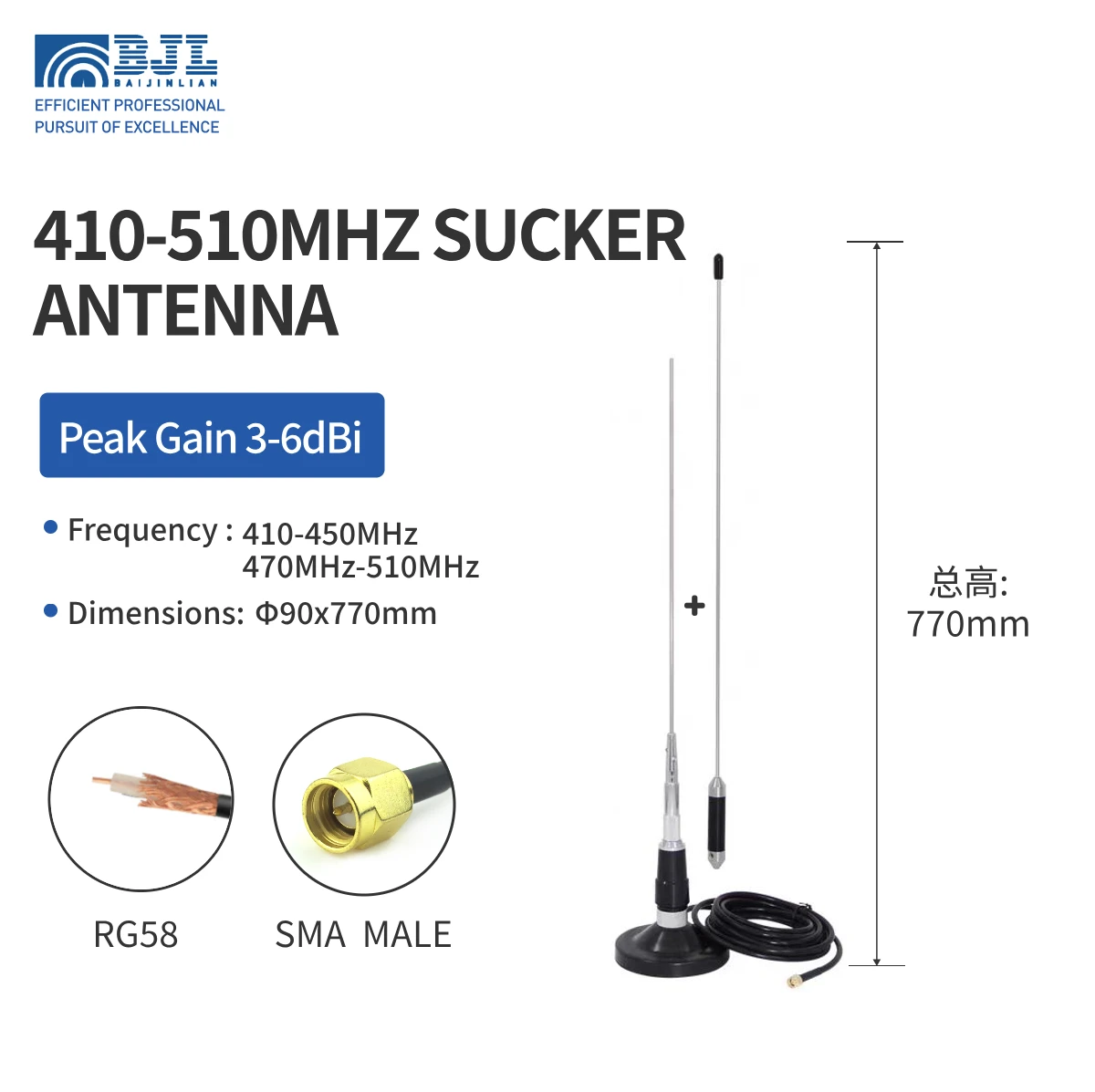

433-510MHz Large Suction Cup Antenna φ90x770mm
433-510MHz Large Suction Cup Antenna φ90x770mm
• Model Number：BJL-DX43306-770-1000
• Dimensions：Ф90x770mm
• Frequency ：410-450MHz/470-510MHz
• Peak Gain ：≤4-7dBi
• V.S.W.R：≤2.0
• Connector type：SMA Male（Customizable）
Specifications
| Model Number：BJL-DX43306-770-1000 | ||
| Item | Specification | |
|
Antenna performance |
Frequency range | 410-450MHz/470-510MHz |
| Bandwidth | 40MHz | |
| Gain | ≤4-7dBi | |
| V.S.W.R | ≤2.0 | |
| Impedance | 50Ω | |
| Radiation direction | Omni-Directional | |
| Polarization | Vertical | |
|
Mechanical Specifications |
Maximum input power | 50W |
| Antenna size | φ90X770mm | |
| Cable type | RG58（Customizable） | |
| Standard Cable Length | 1m/1.5m/2m/3m（Customizable） | |
| Connector type | SMA Male（Customizable） | |
| Product material |
Steel
|
|
| Mounting method | Magnetic attachment | |
|
Environmental performance |
Operating temperature | -40°C to + 85°C |
| Storage temperature | -40°C to + 85°C | |
| Environmentally friendly | RoHS compliant | |
