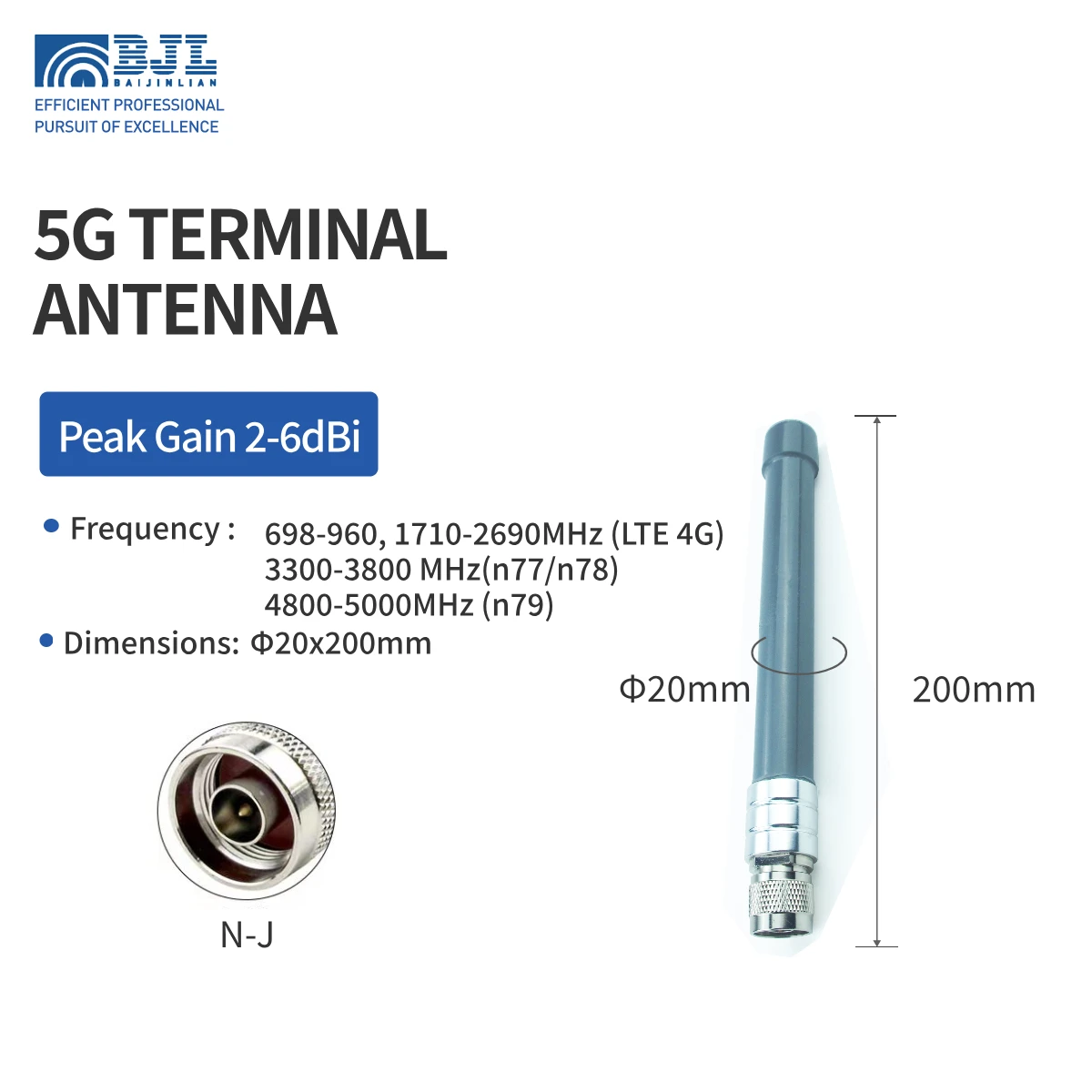

5G Fiberglass Antenna φ20X200mm
5G Fiberglass Antenna φ20X200mm
• Model Number：BJL-B5G05-NJ20200G
• Dimensions：Φ20x200mm
• Frequency ：698-960, 1710-2690MHz (LTE 4G)
3300-3800 MHz (n77/n78)
4800-5000MHz (n79)
• Peak Gain ：≤3-6dBi
• V.S.W.R：≤2.0

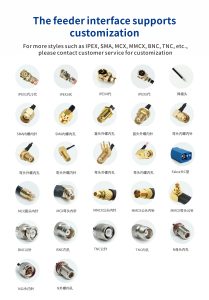

• Connector type：N Male(Customizable)
Specifications
| Model Number：BJL-B5G05-NJ20200G | ||
| Item | Specification | |
|
Antenna performance |
Frequency range | 698-960, 1710-2690MHz (LTE 4G) 3300-3800 MHz (n77/n78) 4800-5000MHz (n79) |
| Bandwidth | / | |
| Gain | ≤3-7dBi | |
| V.S.W.R | ≤2.0 | |
| Impedance | 50Ω | |
| Radiation direction | Omni-Directional | |
| Polarization | Vertical | |
|
Mechanical Specifications |
Maximum input power | 50W |
| Antenna size | φ20X200mm | |
| Inner structure | Brass tube | |
| External structure | Fiberglass | |
| Connector type | N Male(Customizable) | |
| Mounting method | U-shaped pole clamp Base connection Direct threaded connection |
|
|
Environmental performance |
Operating temperature | -40°C to + 85°C |
| Storage temperature | -40°C to + 85°C | |
| Environmentally friendly | RoHS compliant | |
Product Details
