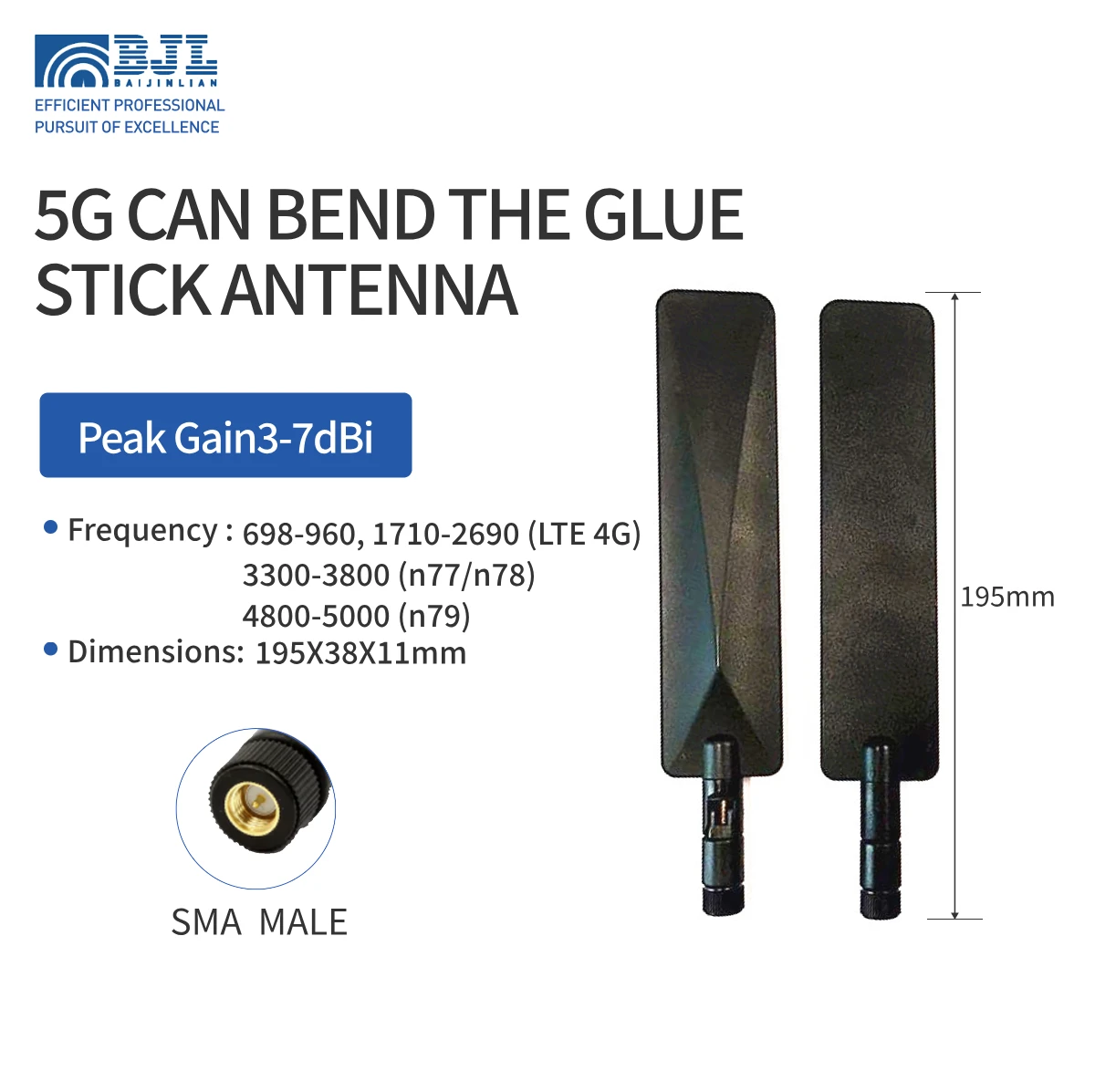

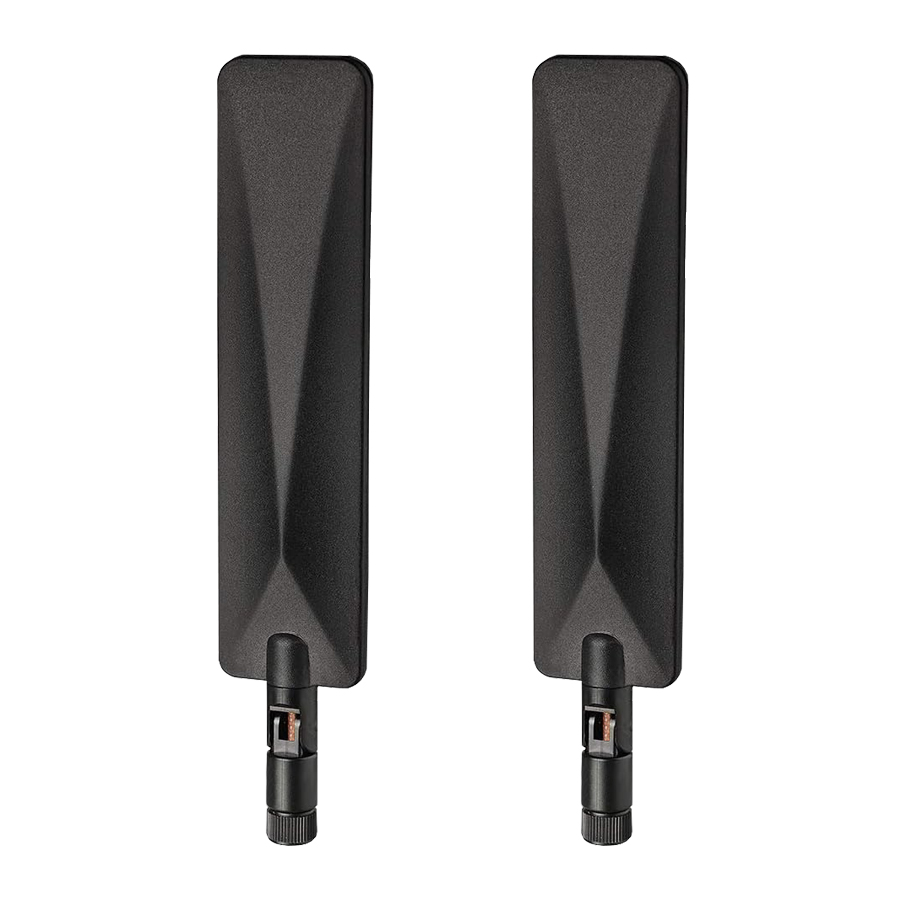

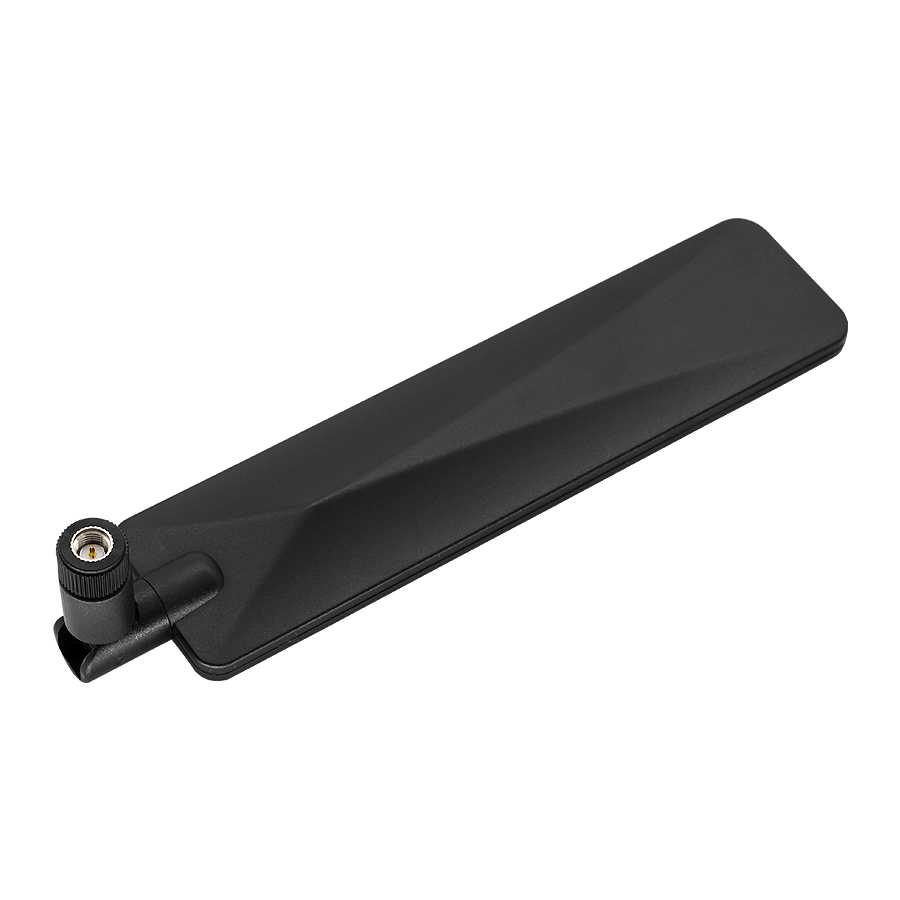

5GHz Glue Stick Antenna 195mm
5GHz Glue Stick Antenna 195mm
• Model Number：BJL-JK5G03-195
• Dimensions：Φ11x38x195mm
• Frequency ：698-960, 1710-2690MHz (LTE 4G)
3300-3800MHz (n77/n78)
4800-5000MHz (n79)
• Peak Gain ：≤3-7dBi
• V.S.W.R：≤2.0
• Connector type：SMA Male/RP SMA Male(Customizable)
Specifications
| Model Number：BJL-JK5G03-195 | ||
| Item | Specification | |
|
Antenna performance |
Frequency range | 698-960, 1710-2690MHz (LTE 4G) 3300-3800MHz (n77/n78) 4800-5000MHz (n79) |
| Bandwidth | / | |
| Gain | ≤3-7dBi | |
| V.S.W.R | ≤2 | |
| Impedance | 50Ω | |
| Radiation direction | Omni-Directional | |
| Polarization | Vertical | |
|
Mechanical Specifications |
Maximum input power | 10W |
| Antenna size | Φ11x38x195mm | |
| Connector type |
SMA Male/RP SMA Male(Customizable)
|
|
| Product material | TPEE | |
| Mounting method | Connector Installation | |
|
Environmental performance |
Operating temperature | -40°C to + 85°C |
| Storage temperature | -40°C to + 85°C | |
| Environmentally friendly | RoHS compliant | |
