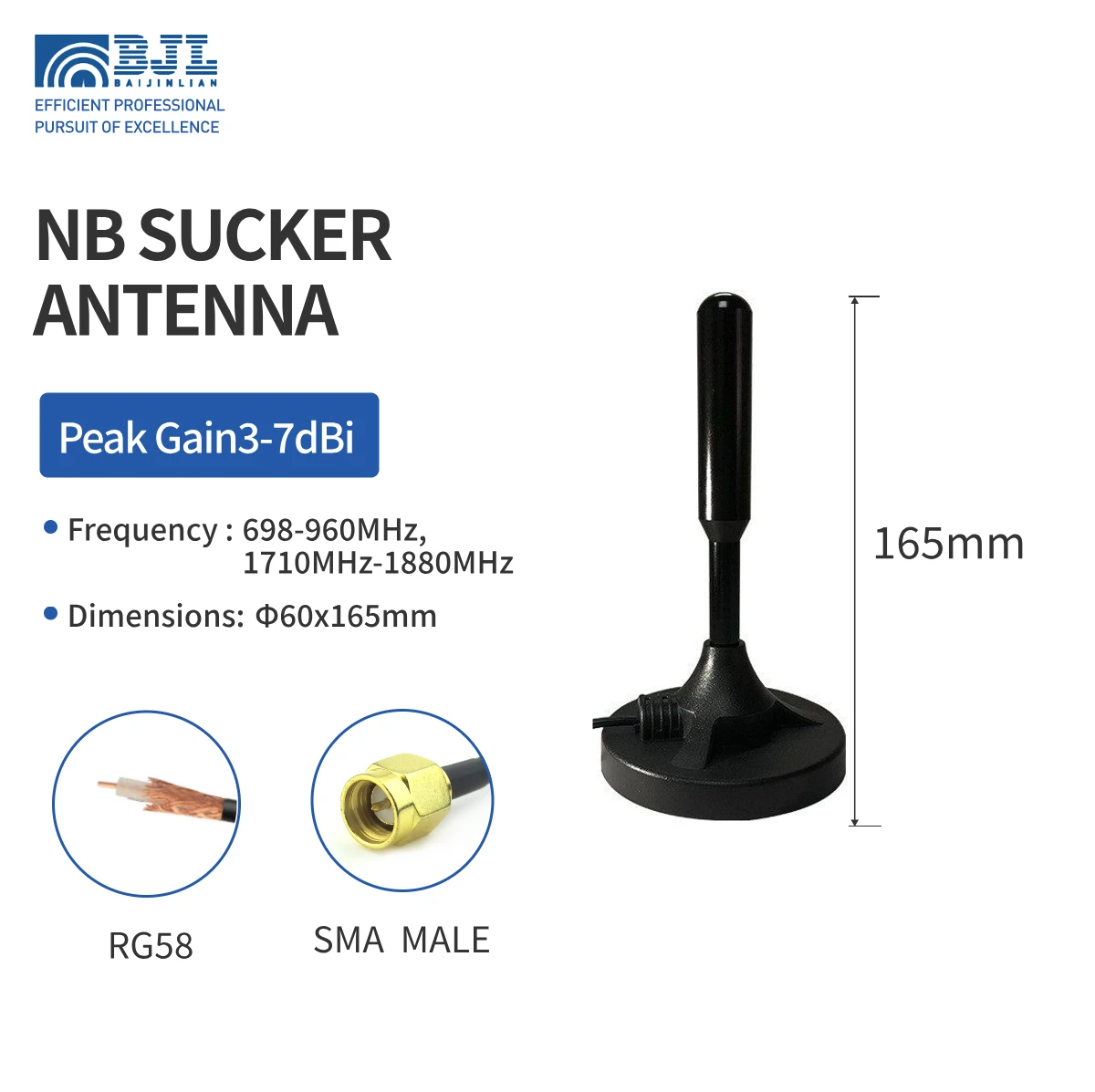

NB Suction Cup Copper Rod Antenna φ60x165mm
NB Suction Cup Copper Rod Antenna φ60x165mm
• Model Number：BJL-XJ8503-110-1000/1500/3000
• Dimensions：Ф60x165mm
• Frequency ：698-960MHz/1710-1880MHz
• Peak Gain ：≤3-7dBi
• V.S.W.R：≤2.0
• Connector type：SMA Male（Customizable）
Specifications
| Model Number：BJL-XJ8503-110-1000/1500/3000 | ||
| Item | Specification | |
|
Antenna performance |
Frequency range | 698-960MHz/1710-1880MHz |
| Bandwidth | 100MHz | |
| Gain | ≤3-7dBi | |
| V.S.W.R | ≤2.0 | |
| Impedance | 50Ω | |
| Radiation direction | Omnidirectional | |
| Polarization | Vertical | |
|
Mechanical Specifications |
Maximum input power | 50W |
| Antenna size | φ60X165mm | |
| Cable type | RG58（Customizable） | |
| Standard Cable Length | 1m/1.5m/2m/3m（Customizable） | |
| Connector type | SMA Male（Customizable） | |
| Product material |
Pure copper
|
|
| Mounting method | Magnetic attachment | |
|
Environmental performance |
Operating temperature | -40°C to + 85°C |
| Storage temperature | -40°C to + 85°C | |
| Environmentally friendly | RoHS compliant | |
