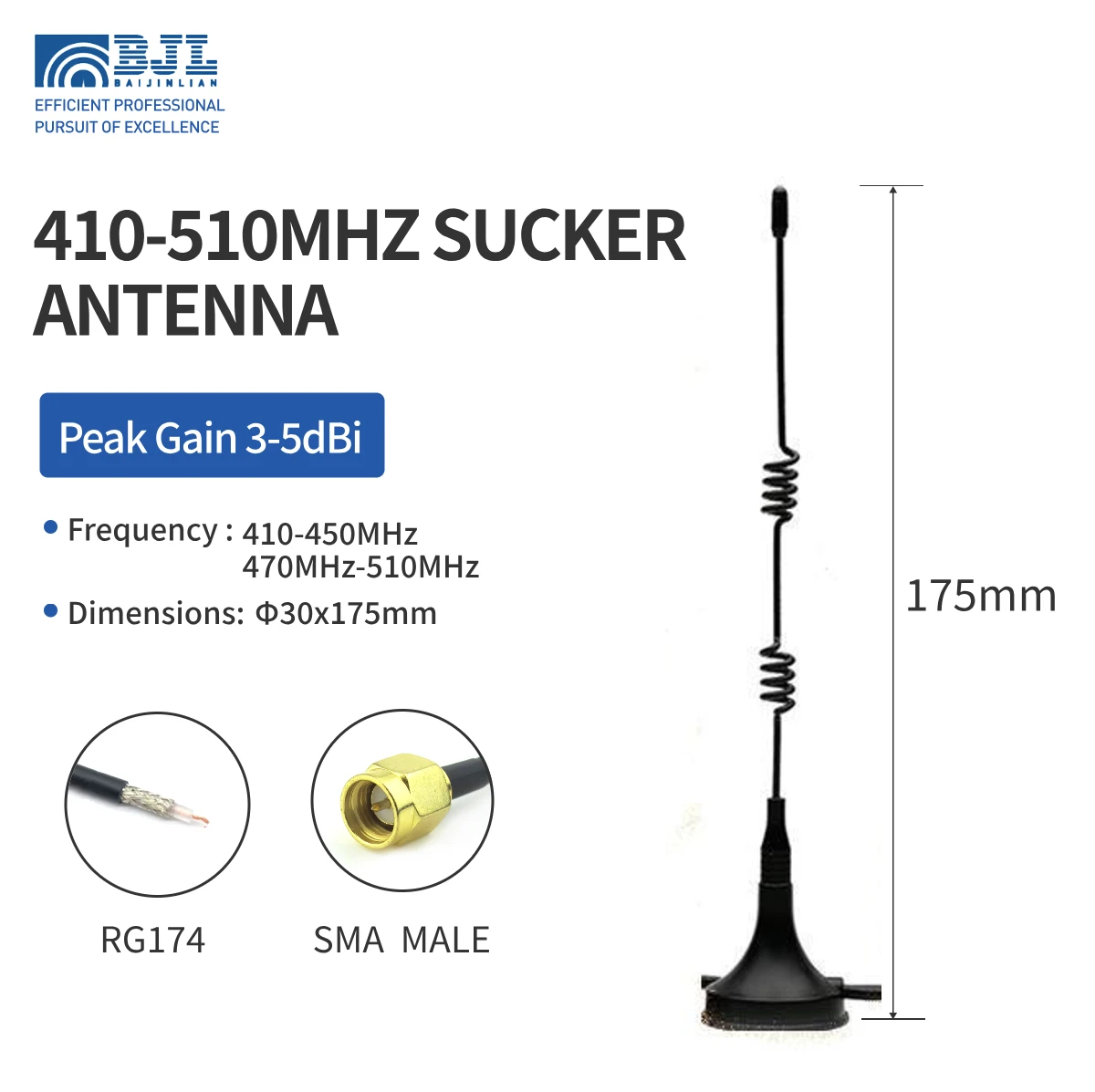

433-510MHz Suction Cup Antenna φ30x175mm
433-510MHz Suction Cup Antenna φ30x175mm
• Model Number：BJL-X4903-Z170-1000/1500/3000
• Dimensions：Ф30x170mm
• Frequency ：410-450MHz/470-510MHz
• Peak Gain ：≤3-5dBi
• V.S.W.R：≤2.0
• Connector type：SMA Male/IPEX （Customizable）
Specifications
| Model Number：BJL-X4903-Z170-1000/1500/3000 | ||
| Item | Specification | |
|
Antenna performance |
Frequency range | 410-450MHz/470-510MHz |
| Bandwidth | 40MHz | |
| Gain | ≤3-5dBi | |
| V.S.W.R | ≤2.0 | |
| Impedance | 50Ω | |
| Radiation direction | Omni-Directional | |
| Polarization | Vertical | |
|
Mechanical Specifications |
Maximum input power | 10W |
| Antenna size | φ30X170mm | |
| Cable type | RG174 /RG178（Customizable） | |
| Standard Cable Length | 1m/1.5m/2m/3m（Customizable） | |
| Connector type | SMA Male/IPEX（Customizable） | |
| Product material | Carbon steel、ABS | |
| Mounting method | Magnetic attachment | |
|
Environmental performance |
Operating temperature | -40°C to + 85°C |
| Storage temperature | -40°C to + 85°C | |
| Environmentally friendly | RoHS compliant | |
