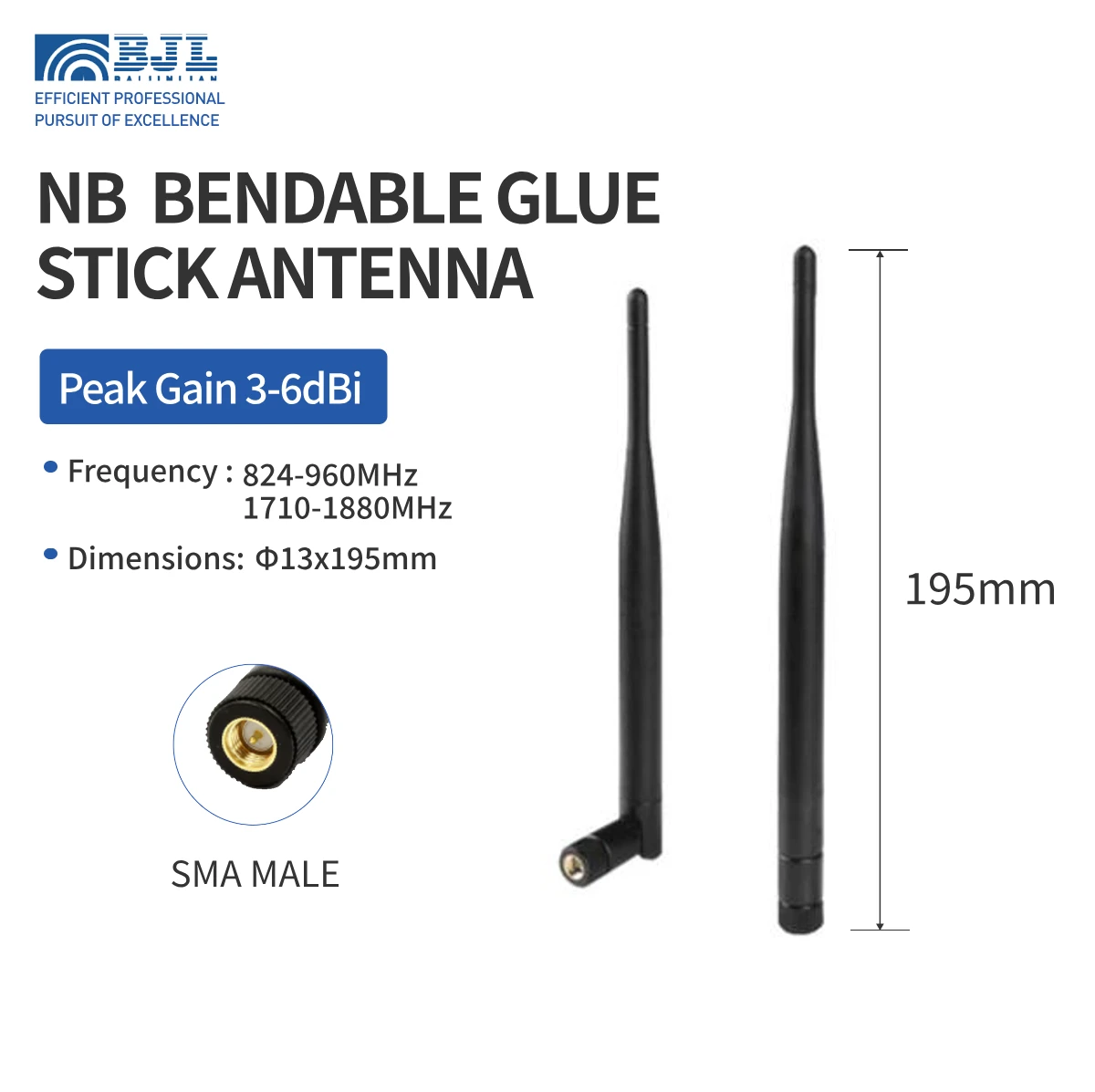

NB Can Bend The Glue Stick Antenna 195mm
NB Can Bend The Glue Stick Antenna 195mm
• Model Number：BJL-JK8503-195
• Dimensions：Φ13x195mm
• Frequency ：698-960/1710-1880MHz
• Peak Gain ：≤3-6dBi
• V.S.W.R：≤2.0
• Connector type：SMA Male/RP SMA Male(Customizable)
Specifications
| Model Number：BJL-JK8503-195 | ||
| Item | Specification | |
|
Antenna performance |
Frequency range | 698-960/1710-1880MHz |
| Bandwidth | 262/170MHz | |
| Gain | ≤3-6dBi | |
| V.S.W.R | ≤2 | |
| Impedance | 50Ω | |
| Radiation direction | Omni-Directional | |
| Polarization | Vertical | |
|
Mechanical Specifications |
Maximum input power | 10W |
| Antenna size |
Φ13x195mm
|
|
| Connector type |
SMA Male/RP SMA Male(Customizable)
|
|
| Product material | TPEE | |
| Mounting method | Connector Installation | |
|
Environmental performance |
Operating temperature | -40°C to + 85°C |
| Storage temperature | -40°C to + 85°C | |
| Environmentally friendly | RoHS compliant | |
