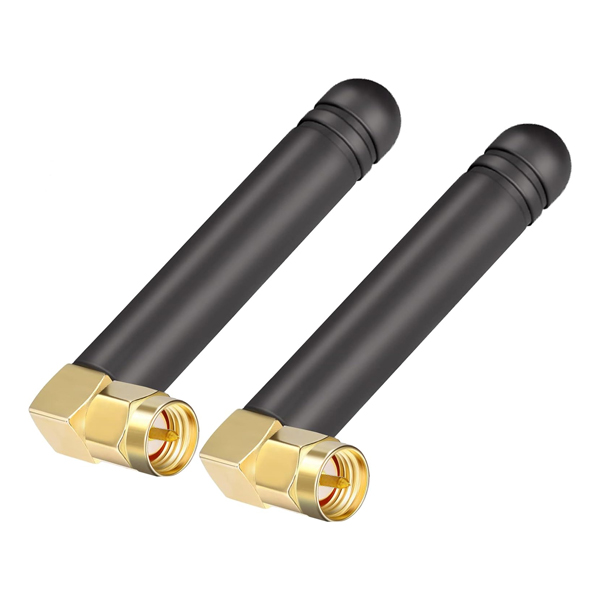

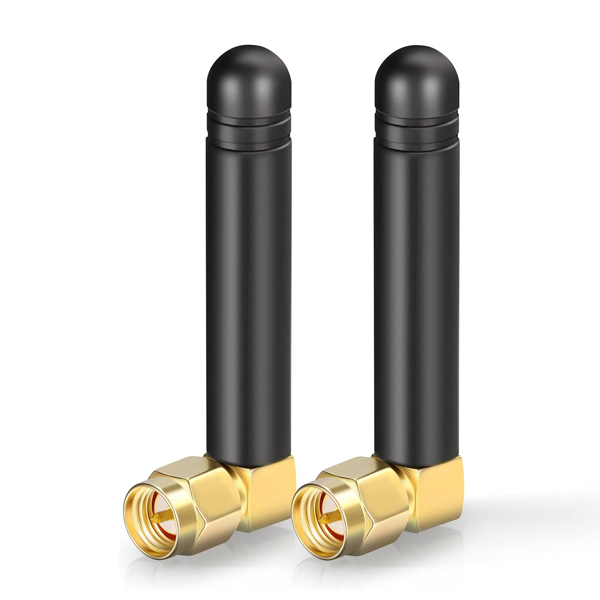

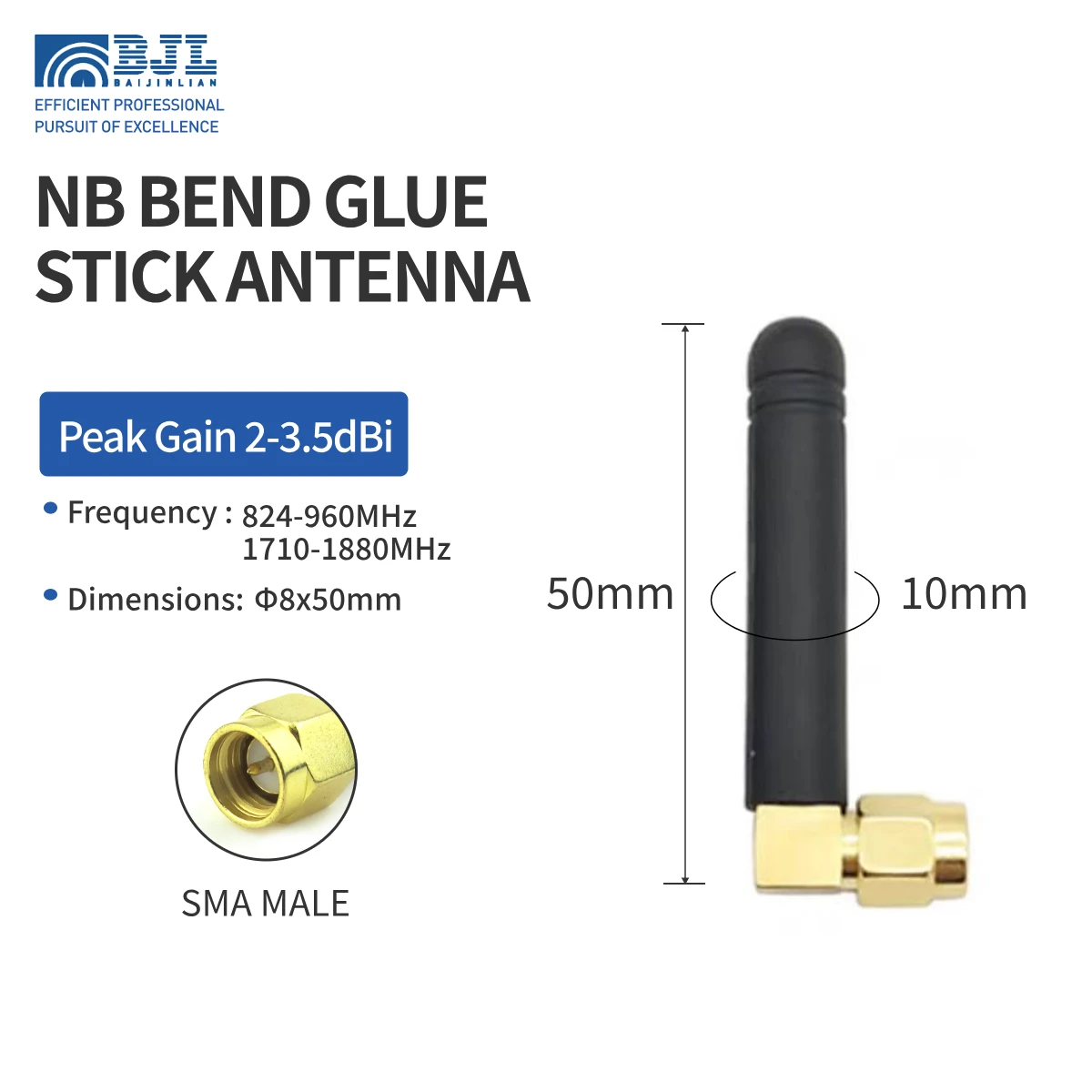

NB Elbow Glue Rod Antenna 50mm
NB Elbow Glue Rod Antenna 50mm
• Model Number：BJL-XW8503-B050
• Dimensions：Ф8x50mm
• Frequency ：698-960/1710-1880MHz
• Peak Gain ：≤2-3.5dBi
• V.S.W.R：≤2.0
• Connector type：SMA Male（Customizable）
Specifications
| Model Number：BJL-XW8503-B050 | ||
| Item | Specification | |
|
Antenna performance |
Frequency range | 698-960/1710-1880MHz |
| Bandwidth | 262/170MHz | |
| Gain | ≤2-3.5dBi | |
| V.S.W.R | ≤2 | |
| Impedance | 50Ω | |
| Radiation direction | Omni-Directional | |
| Polarization | Vertical | |
|
Mechanical Specifications |
Maximum input power | 10W |
| Antenna size | φ8X50mm | |
| Connector type | SMA Male/RP SMA Male(Customizable) | |
| Product material | TPEE | |
| Mounting method | Connector Installation | |
|
Environmental performance |
Operating temperature | -40°C to + 85°C |
| Storage temperature | -40°C to + 85°C | |
| Environmentally friendly | RoHS compliant | |
